11 43 000 Removing and installing/sealing guide tube for oil dipstick (M57T2-SCR)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REINFORCEMENT PLATE (E70 only).
Drain and add ENGINE OIL .

Release positive starter motor wire (3) from bracket.

Detach fuel delivery line (1) from bracket.

Detach fuel return line (4) from bracket.

Release screw (2).

Tightening torque: 11 13 4AZ .

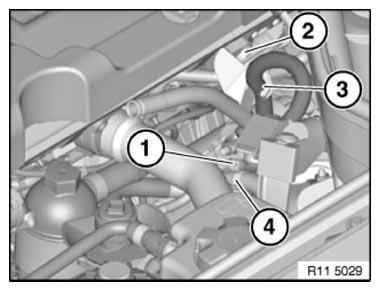

Fig 1: Identifying Positive Starter Motor Wire, Fuel Delivery And Return Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release electrical wiring (2) from bracket.

Release screw (1).

Tightening torque: 11 13 4AZ .

Remove guide tube (3) in direction of arrow.

Installation note:

Replace sealing ring.

When installing, apply a thin coating of lubricant on sealing ring.

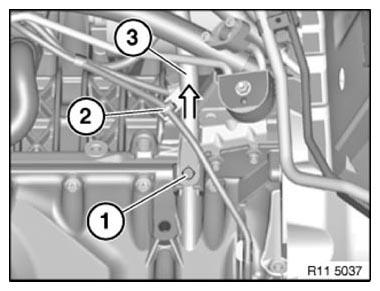

Fig 2: Removing Guide Tube

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
