11 61 350 Removing and installing/replacing left pressure pipe (charge air hose (M57T2-SCR)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Check function of DDE
Remove engine underbody protection. See UNDERBODY PROTECTION .
Remove acoustic cover. See 13..... REMOVE THE ACOUSTIC COVERS (M57T2 WITH AND WITHOUT SCR) .

IMPORTANT: Pressure pipes cannot be fitted without lubricant.
Damaged shaped sealing rings will result in a pressure loss, risk of damage to turbocharger.

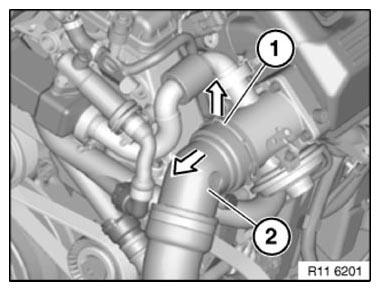

Unlock locking clip (1) in direction of arrow.

Release pressure pipe (2) in direction of arrow.

Fig 1: Releasing Pressure Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

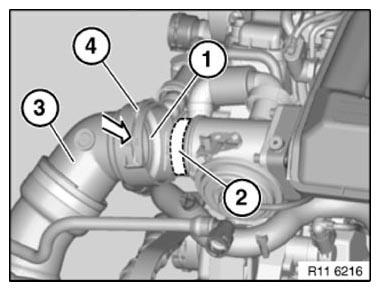

Release pressure pipe at points (1).

Detach cable from retainer (2).

Disconnect plug connection (3).

Fig 2: Identifying Pressure Pipe, Retainer And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Visually inspect shaped sealing ring (1) for correct seating and damage.

Coat all mounting fittings with anti-friction agent (2).

Lock locking clip (4).

Attach pressure pipe (3) in direction of arrow.

Installation note:

VDA couplings are correctly fitted when they snap into place with an audible click.

Fig 3: Attaching Pressure Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of Digital Diesel Electronics.

Check pressure pipes for leaks.
