11 14 151 Replacing radial crankshaft seal on transmission side (N55)

Special tools required:

• 11 8 220
• 23 0 490
• 11 9 180
• 11 9 183

Necessary preliminary work:

• Remove FLYWHEEL

Remove magnet wheel (1) from crankshaft.

Fig 1: Identifying Magnet Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

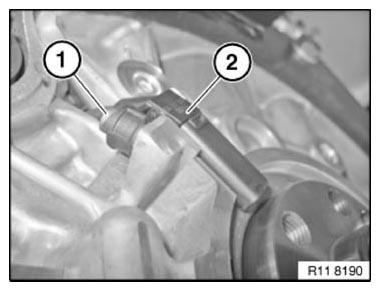

Release screw on pulse sensor (1).

Slide PULSE SENSOR (2) upwards.

Fig 2: Identifying Pulse Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

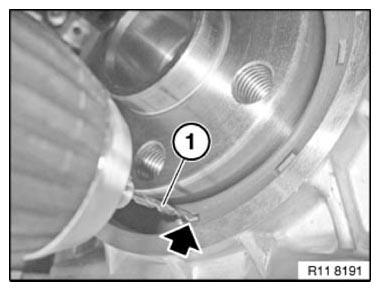

Drill a hole with a drill (1) in the radial shaft seal (see arrow).

Fig 3: Locating Radial Shaft Seal Hole

Courtesy of BMW OF NORTH AMERICA, INC.

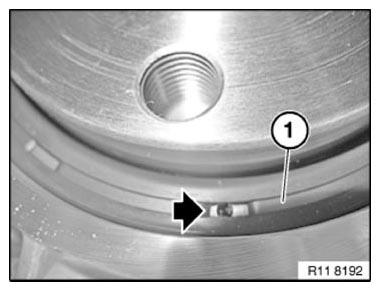

Fig 4: Locating Radial Shaft Seal Swarf

Courtesy of BMW OF NORTH AMERICA, INC.

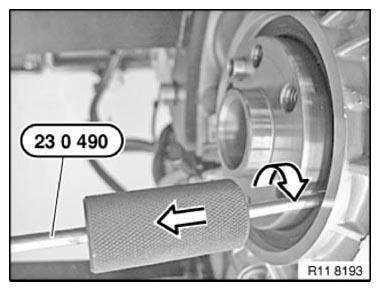

Screw in special tool 23 0 490 in direction of arrow.

Drive out radial shaft seal with impact weight in direction of arrow.

Fig 5: Removing Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

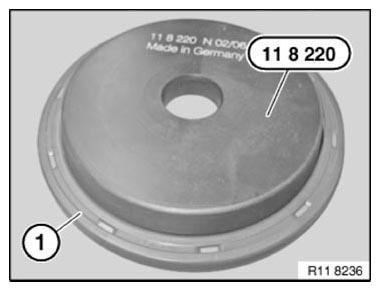

Prepare radial shaft seal (1) on special tool 11 8 220 .

Fig 6: Identifying Radial Shaft Seal And Special Tool (11 8 220)

Courtesy of BMW OF NORTH AMERICA, INC.

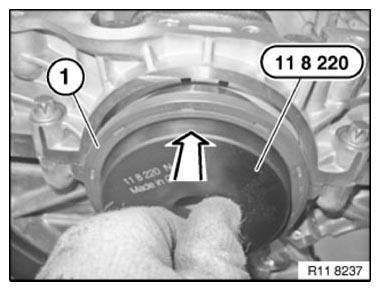

Position the radial shaft seal (1) with special tool 11 8 220 on the crankshaft.

Fig 7: Positioning Radial Shaft Seal Using Special Tool (11 8 220)

Courtesy of BMW OF NORTH AMERICA, INC.

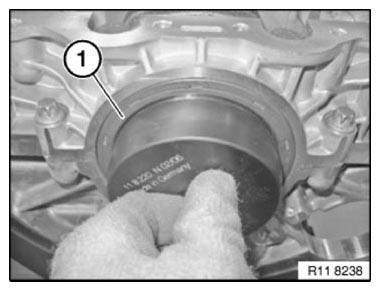

Brush radial shaft seal (1) over the special tool 11 8 220 .

Move radial shaft seal (1) parallel up against the crankcase.

Fig 8: Moving Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

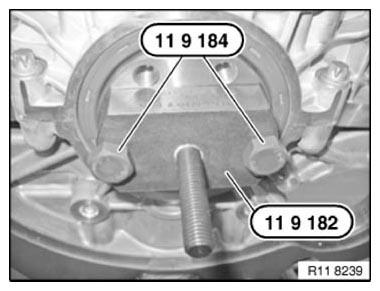

Secure special tool 11 9 182 to crankshaft with special tool 11 9 184 from set of special tools 11 9 180 .

Fig 9: Identifying Special Tool (11 9 182 And 11 9 184)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Prepare special tool 11 9 181 from set of special tools 11 9 180 for installation.

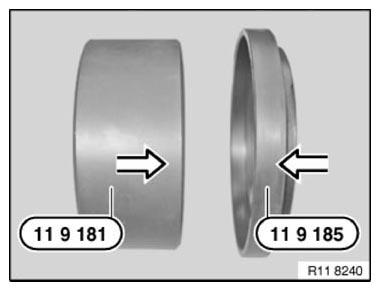

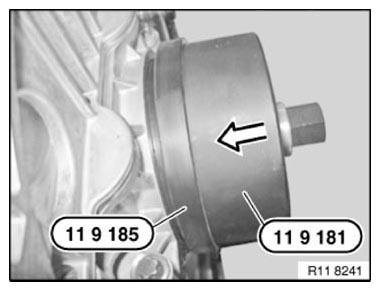

Connect special tool 11 9 185 to special tool 11 9 181 from set of special tools 11 9 180 .

Fig 10: Connecting Special Tool (11 9 185) Onto Special Tool (11 9 181)

Courtesy of BMW OF NORTH AMERICA, INC.

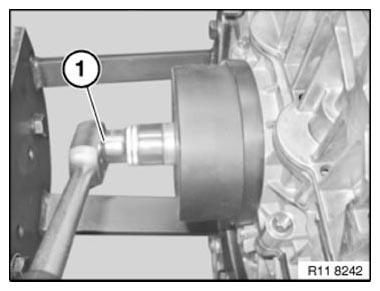

Pull in radial shaft seal with special tool 11 9 181 and 11 9 185 in conjunction with special tool 11 9 183 from set of special tools 11 9 180 .

Fig 11: Pulling Radial Shaft Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Screw on radial shaft seal with special tool 11 9 183 to limit position.

Fig 12: Removing Radial Shaft Seal Using Special Tool (11 9 183)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Assemble engine.
