11 14 080 Removing and installing timing case cover, top left (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Timing case cover, cylinders 5-8

Necessary preliminary work:

Remove both SOLENOID VALVES on left side

Release screws (1).

Tightening torque: 11 14 3AZ .

Remove timing case cover (2).

Installation note:

Replace gasket.

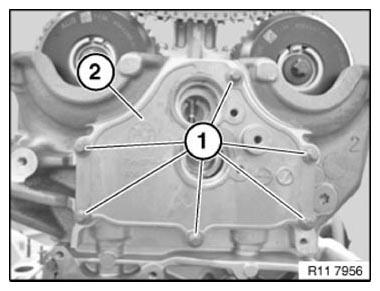

Fig 1: Identifying Timing Case Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
