11 71 025 Removing and installing/replacing throttle valve (M57T2)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove acoustic cover. See 13..... REMOVE THE ACOUSTIC COVERS (M57T2 WITH AND WITHOUT SCR) .

Unclip Bowden cable for engine compartment lid actuator from transverse reinforcement (1).

Release screws on left and right sides.

Tightening torque: 51 71 4AZ

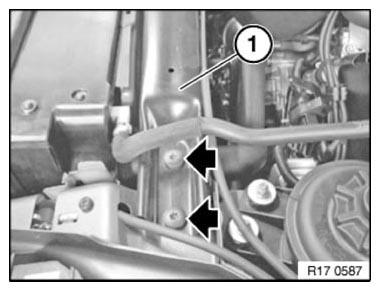

Fig 1: Locating Transverse Reinforcement Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) and remove.

Unclip cable clip (3).

Unlock snap fastener (2) on pressure pipe.

Detach pressure pipe from exhaust-gas recirculation valve.

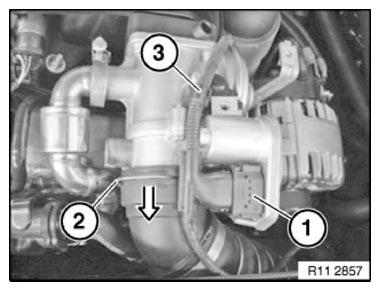

Fig 2: Detaching Pressure Pipe From Exhaust-Gas Recirculation Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 11 71 4AZ .

Remove the throttle valve from the exhaust-gas recirculation valve.

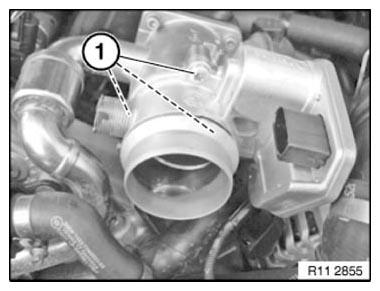

Fig 3: Identifying Exhaust-Gas Recirculation Valve And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clean sealing surfaces.

Replace gasket (1).

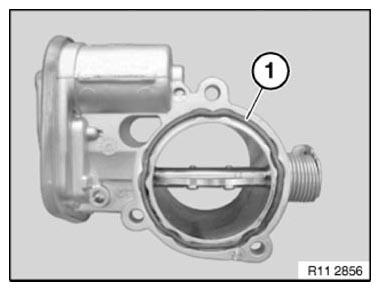

Fig 4: Identifying Throttle Valve And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
