11 78 540 Replacing left monitor sensor (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 7 020

WARNING: Risk of burning!
Only perform this work after engine has cooled down.

Necessary preliminary work:

Check function of DME control unit
Switch off ignition
Remove AIR FILTER HOUSING

Release retaining clip (1).

Remove heat shield wire ring (2) over oxygen sensor.

Detach oxygen sensor cable from retaining clips (3).

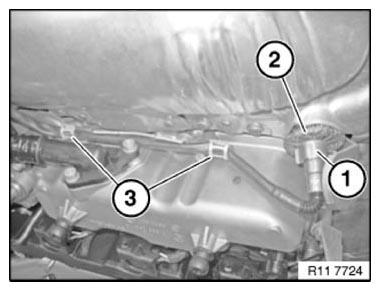

Fig 1: Detaching Wire Ring And Oxygen Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Release monitoring sensor (1) with special tool 11 7 020 .

Fig 2: Removing Monitoring Sensor With Special Tool (11 7 020)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The threads of new lambda control/monitoring sensors are already coated with Never Seez Compound.

If a lambda control/monitoring sensor is to be reused, apply a thin and even coating of Never Seez Compound to the thread only.

The part of the lambda control/monitoring sensor which projects into the exhaust branch (sensor ceramics) must not be cleaned and not coated with lubricant.

Fasten monitoring sensor (1) with special tool 11 7 020 .

Tightening torque: 11 78 1AZ .

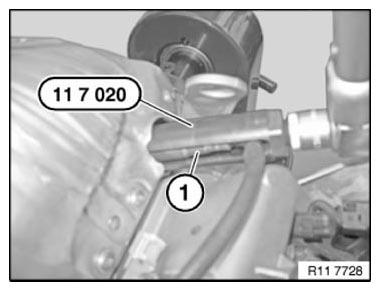

Fig 3: Removing Monitoring Sensor With Special Tool (11 7 020)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check function of DME control unit.

Pay attention to cable routing of monitor sensor.
