11 74 509 Replacing both pressure converters for turbocharger (N63)

Necessary preliminary work:

• Partially release charge air cooler EXPANSION TANK .
• Partially release AUXILIARY WATER PUMP  for exhaust turbocharger (not F04).
• Disconnect plug connection at COOLANT THERMOSTAT .

Pressure converter, cylinders 1-4:

Disconnect plug connection (1) on pressure converter.

Installation note:

Plug connection (1) must snap audibly into place!

Disconnect black vacuum hose at connection (VAC = vacuum reservoir).

Disconnect black/red vacuum hose at connection (OUT= turbocharger vacuum unit).

Unscrew nuts (2).

Tightening torque: 11 65 8AZ .

Remove pressure converter.

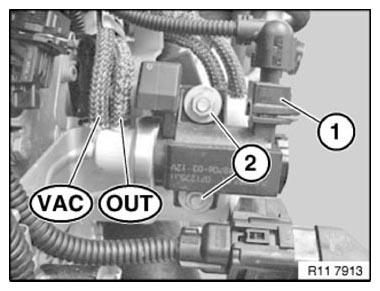

Fig 1: Identifying Vacuum Hose Connection (VAC Vacuum Reservoir)

Courtesy of BMW OF NORTH AMERICA, INC.

Pressure converter, cylinders 5-8:

Disconnect plug connection (1) on pressure converter.

Installation note:

Plug connection (1) must snap audibly into place!

Disconnect black vacuum hose at connection (VAC = vacuum reservoir).

Disconnect black/blue vacuum hose at connection (OUT= turbocharger vacuum unit).

Unscrew nuts (2).

Tightening torque: 11 65 8AZ .

Remove pressure converter.

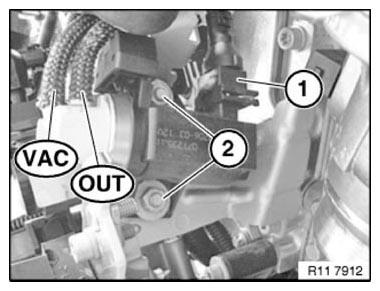

Fig 2: Identifying Vacuum Reservoir Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Check activation via BMW diagnosis system.
