11 12 595 Checking a valve guide for wear (M57T2)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 510

Necessary preliminary tasks:

Remove valve

To measure tilt clearance, install a new valve so that end of valve stem is flush with valve guide.

Fit special tool 00 2 510 (dial gauge) and measure tilt clearance.

Max. permitted tilt clearance:

Refer to Technical Data. See CYLINDER HEAD WITH LID, BMW, M57T2,/TOP/SCR, D30 .

NOTE: In event of excessive tilt clearance, replace cylinder head and valves.

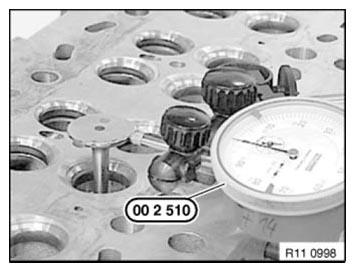

Fig 1: Fitting Special Tool 00 2 510 (Dial Gauge)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
