11 15 003 Replacing engine crankcase ventilation line for cylinders 5-8

Necessary preliminary work:

• Remove AIR INTAKE SILENCER HOUSING on left
• Remove COOLANT EXPANSION TANK
• Detach WATER VALVE on side member

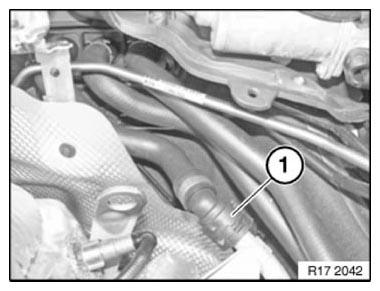

Unlock coolant hose (1) and detach from coolant pipe.

Fig 1: Identifying Coolant Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 17 10 3AZ .

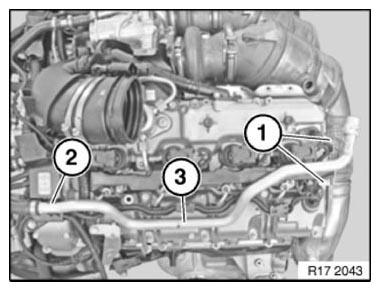

Unclip coolant pipe (2) from holder (3).

Fig 2: Identifying Coolant Pipe With Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

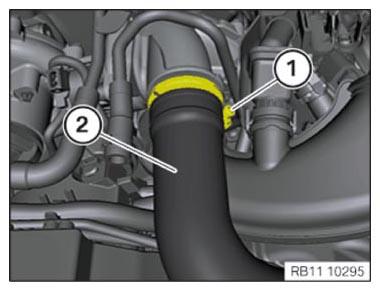

Release clamp (1).

Tightening torque: 13 71 8AZ .

Bend the charge air pipe (2) slightly to the side.

Check the gasket on the exhaust turbocharger. replacing if necessary.

Fig 3: Identifying Charge Air Pipe & Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Version 1:

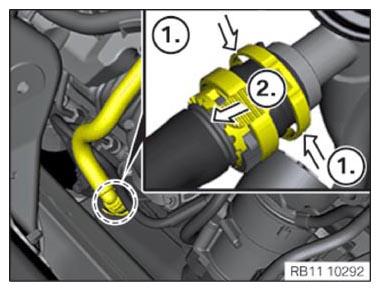

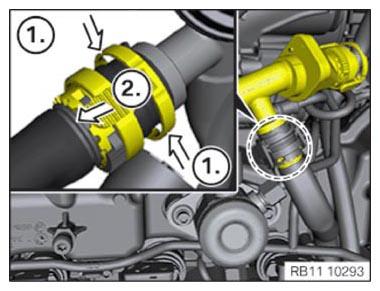

1. Unlock the retainer.
2. Pull off the retainer together with the line.
   Fig 4: Pulling Off Retainer Together With Line

   Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

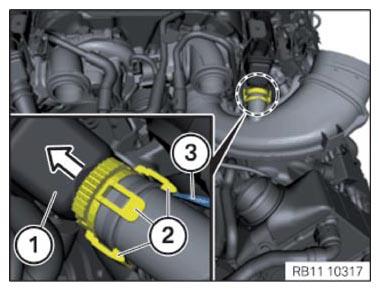

Pull the line (1) gently in the direction indicated by the arrow.

At the same time, use a screwdriver (3) to unlock the latch mechanisms (2) one after the other.

Pull the connecting line off the clean air pipe and engine crankcase ventilation line.

Fig 5: Pulling Connecting Line Off Clean Air Pipe And Engine Crankcase Ventilation Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 13 71 1AZ .

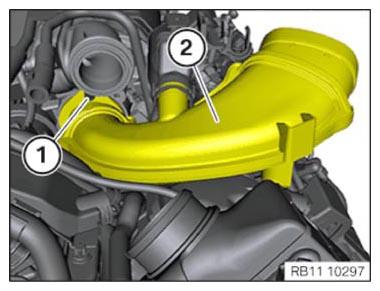

Pull clean air pipe (2) from exhaust turbocharger.

Fig 6: Identifying Air Pipe On Exhaust Turbocharger

Courtesy of BMW OF NORTH AMERICA, INC.

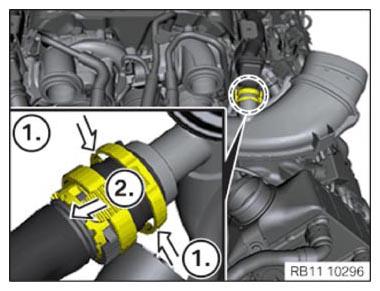

1. Unlock the retainer.
2. Pull off the retainer together with the line.
   Fig 7: Pulling Off Retainer Together With Line

   Courtesy of BMW OF NORTH AMERICA, INC.

Version 1:

1. Unlock the retainer.
2. Pull off the retainer together with the line.

Extract the crankcase ventilation line.

Fig 8: Pulling Off Retainer Together With Line

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2:

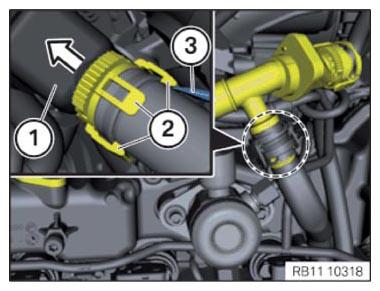

Pull the line (1) gently in the direction indicated by the arrow.

At the same time, use a screwdriver (3) to unlock the latch mechanisms (2) one after the other.

Pull the connecting line off the clean air pipe and engine crankcase ventilation line.

Extract the crankcase ventilation line.

Fig 9: Removing Latch Mechanisms
