11 24 571 Replace all connecting rod bearings (M57T2-SCR)

Special tools required:

• 00 2 590
• 00 9 120

Necessary preliminary tasks:

• Removing all PISTONS

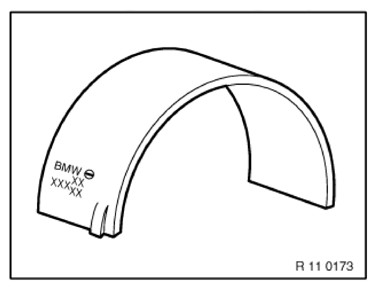

Install the normal connecting rod bearing shell (low version red) in the connecting rod bearing cap.

Fig 1: Identifying Normal Connecting Rod Bearing Shell (Low Version Red)

Courtesy of BMW OF NORTH AMERICA, INC.

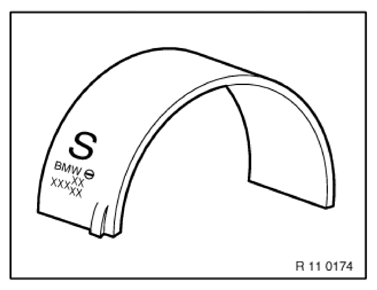

Install the more wear-resistant "S" connecting rod bearing shell (high version blue) in the connecting rod.

Fig 2: Identifying Connecting Rod Bearing Shell (High Version Blue)

Courtesy of BMW OF NORTH AMERICA, INC.

Insert one blue and one red bearing shell for each connecting rod (irrespective of the color coding on the connecting rod shaft).

Fig 3: Locating Stages On Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Install piston.

Check connecting-rod bearing play.

Piston in BDC position.

Fit special tool 00 2 590 (Plastigage type PG 1) to oil-free crankshaft.

Fit bearing caps so that matching numbers match up.

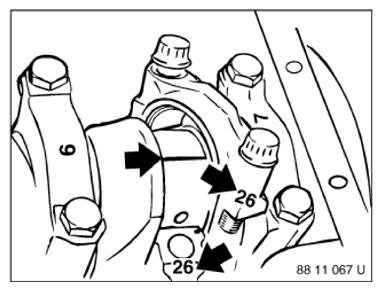

Fig 4: Locating Bearing Caps Matching Numbers

Courtesy of BMW OF NORTH AMERICA, INC.

Use the old connecting rod bolts to check connecting-rod bearing play.

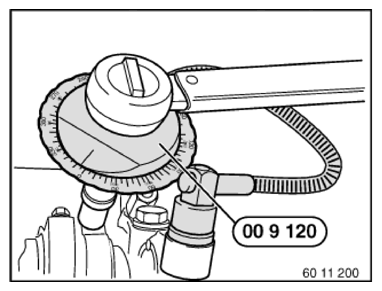

Tighten down connecting rod bolts with special tool 00 9 120 .

Tightening torque: 11 24 1AZ .

Fig 5: Tightening Down Connecting Rod Bolts With Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bearing caps.

Read off bearing clearance at width of crushed plastic thread (Plastigage) with aid of measuring scale.

Connecting-Rod Bearing Play. See 1124 CONNECTING RODS AND BEARINGS (M57T2/TOP/SCR/D30) .

Remove Plastigage.

Fig 6: Checking Connecting-Rod Bearing Play

Courtesy of BMW OF NORTH AMERICA, INC.

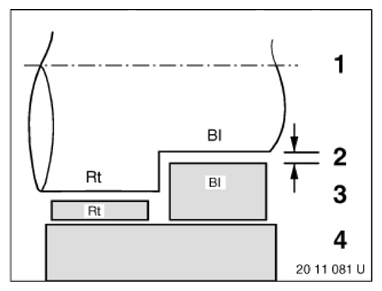

Overview:

Color code/shaft diameter/bearing strength

Rt = red

BI = blue

1. Crankshaft journal
2. Bearing clearance
3. Bearing shells: red or blue
4. Connecting rods
   Fig 7: Identifying Color Code/Shaft Diameter/Bearing Strength

   Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
