11 33 052 Removing and installing/replacing all rocker arms on left side (N63)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 480

(cylinder bank 5 to 8)

Necessary preliminary work:

Remove LEFT INLET CAMSHAFT .
Remove left EXHAUST CAMSHAFT .

IMPORTANT: Used rocker arms (1) may only be reused in the same position.
Tolerance classes are not required.

Remove rocker arm (1) and set down in neat order in special tool 11 4 480 .

Install rocker arm (1).

Align all rocker arms (1) straight.

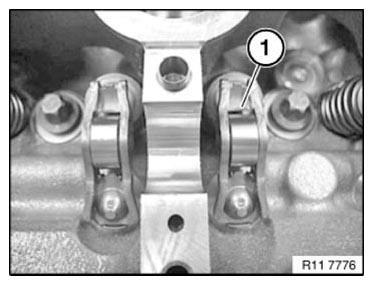

Fig 1: Identifying Rocker Arms

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
