11 31 052 Replacing both timing chains (N63)

Special tools required:

• 00 2 300
• 11 2 001
• 11 2 002
• 11 2 003
• 11 2 007

Necessary preliminary tasks:

• Remove lower TIMING CASE COVER
• To facilitate removal and installation of timing chains, turn engine over with special tool 00 2 300 .

Timing drive, cylinders 1 to 4.

Remove guide rail (5) from bearing bolt.

Remove timing chain (3) with tensioning rail (4) from bearing bolt.

Timing drive, cylinders 5 to 8.

Remove guide rail (1) from bearing bolt.

Remove timing chain (2) with tensioning rail (6) from bearing bolt.

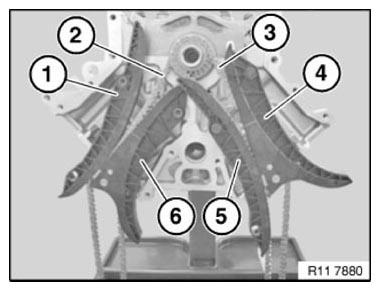

Fig 1: Identifying Timing Chain, Guide Rail And Tensioning Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install new bearing bolts when replacing crankcase.

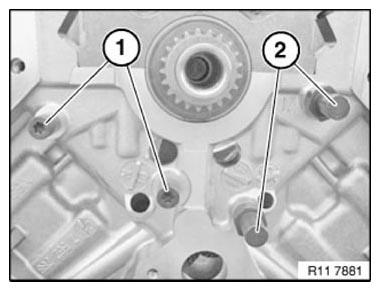

Fig 2: Identifying Bearing Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Timing drive, cylinders 1 to 4.

Install bearing cap screws (2) using a suitable tool.

Tightening torque: 11 31 1 AZ .

Timing drive, cylinders 5 to 8.

Install bearing cap screws (1).

Tightening torque: 11 31 2 AZ .

Attach special tools 11 2 001 and 11 2 002 to the crankshaft.

Insert special tool 11 2 007 and remove sprocket wheel with special tool 11 2 003 .

Installation note:

Check sprocket wheels for wear, replace if necessary.

Heat sprocket wheel to 60 °C  .

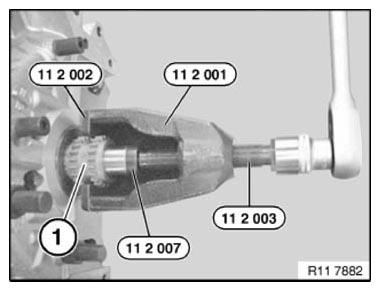

Fig 3: Removing Sprocket Wheel With Special Tool (11 2 003)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure Woodruff key (1) is installed in correct position in crankshaft (2).

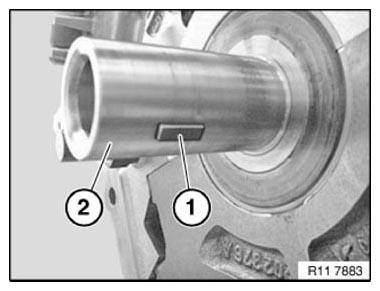

Fig 4: Identifying Crankshaft And Woodruff Key

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Maintain tension of timing chains when installing timing case cover.

Observe sparking protection on timing case cover.

Make sure timing chain (1) is correctly installed when placing it in guide rail (3).

Assemble engine.
