64 11 326 Replacing the button caps of the heating and air conditioning system control panel

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 340

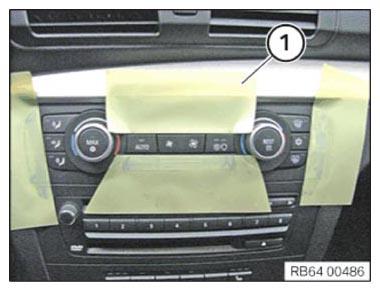

Tape area (1) around the button caps with adhesive tape.

Fig 1: Identifying Tape Area Around Button Caps With Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

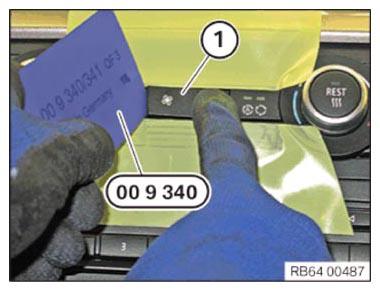

Press blower rocker switch (1) on one side and pry it off on the other side with special tool 00 9 340 .

Fig 2: Prying Blower Rocker Switch Using Tool

Courtesy of BMW OF NORTH AMERICA, INC.

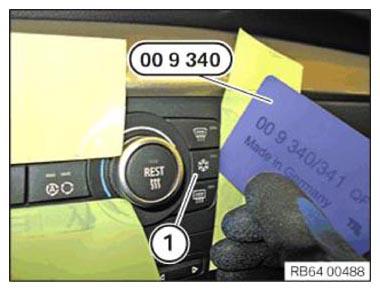

Pry off remaining button caps (1) with special tool 00 9 340 .

Fig 3: Prying Off Button Caps Using Special Tool 00 9 340

Courtesy of BMW OF NORTH AMERICA, INC.

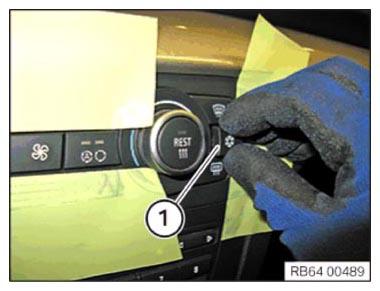

Clip in button caps (1) into operating unit.

Remove adhesive tape.

Fig 4: Installing Button Caps Into Operating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of the air conditioning.
