Section 369 (Brakes - Repair)
>>
Parking Brake
>>
34 41... Overview Of Parking Brake
34 41... Overview Of Parking Brake
WARNING:
This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

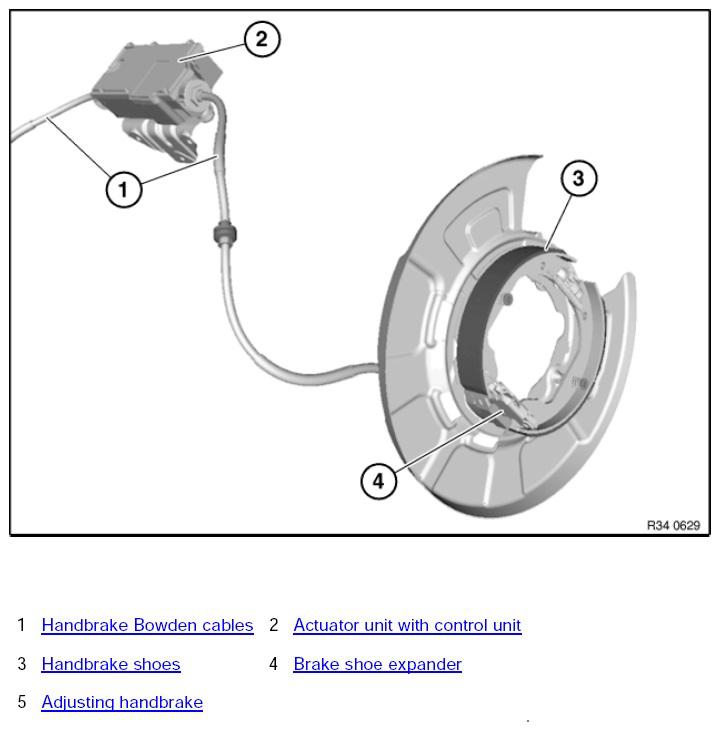

Fig 1: Overview Of Parking Brake
Courtesy of BMW OF NORTH AMERICA, INC.
