Brake Lines: Notes

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

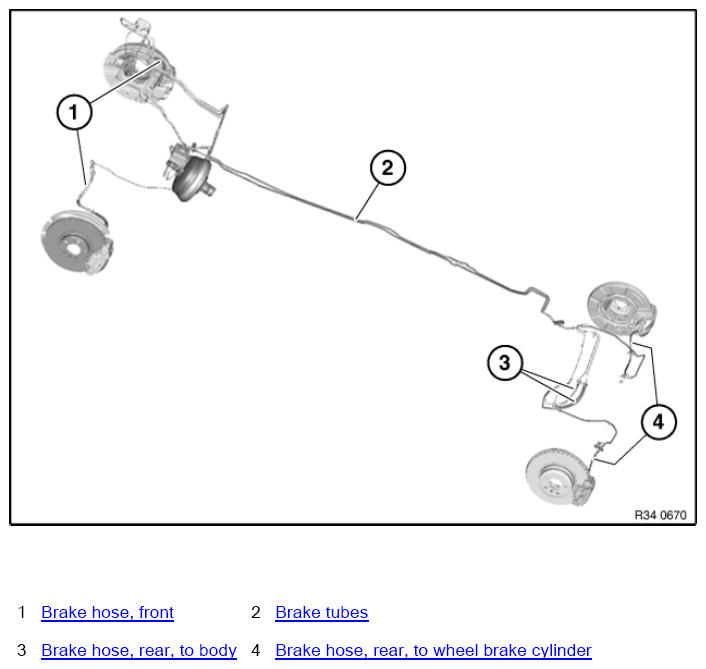

Fig 1: Overview Of Brake Lines
G09968375Courtesy of BMW OF NORTH AMERICA, INC.
