34 33 071 Replacing Vacuum Hose For Brake Booster (N62TU)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Before beginning work, fully press the brake pedal several times to reduce the vacuum pressure in the brake servo. This makes it easier to remove the vacuum hose.
Vacuum hose and non-return valve are welded together and are replaced together as a single unit.

Necessary preliminary tasks:

Read and comply with GENERAL INFORMATION .
Remove PARTITION WALL, UNITS COMPARTMENT on the left

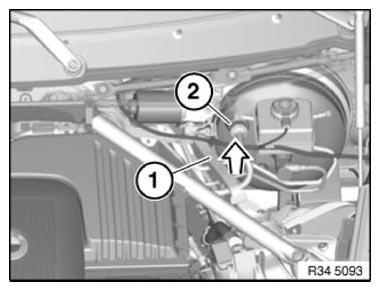

Pull off partition wall seal upper part (1) in direction of arrow.

Remove non-return valve (2) from brake servo.

Installation note:

Check gasket for non-return valve and replace if necessary.

Fig 1: Non-Return Valve

Courtesy of BMW OF NORTH AMERICA, INC.

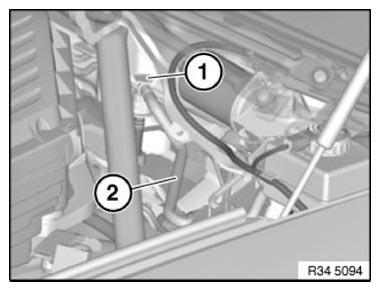

Unlock quick-release fastener (1) and detach vacuum line (2).

Fig 2: Vacuum Line And Fastener

Courtesy of BMW OF NORTH AMERICA, INC.
