72 12 060 Removing And Installing/Replacing Left Or Right Head Airbag

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Read and comply with safety regulations for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling can activate airbag and cause injury.
A damaged head airbag must be replaced.
A damaged head airbag exhibits an impaired protective function and in extreme cases loses its protective function altogether.

Necessary preliminary tasks:

Disconnect BATTERY NEGATIVE LEAD .
Remove ROOFLINER .
Follow INSTRUCTIONS for unlocking and locking airbag plug connection.

Installation summary, retaining elements, head airbag:

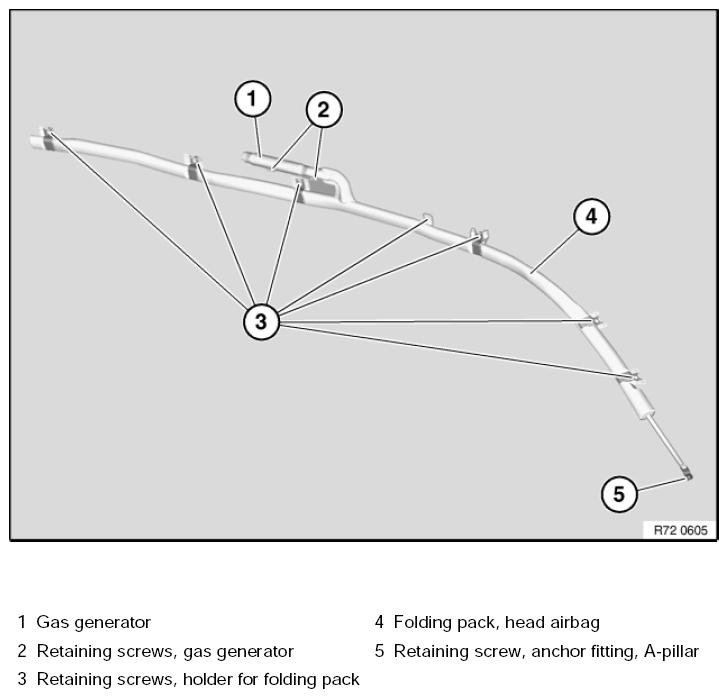

Fig 1: Left/Right Head Airbag Components

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When removing head airbag, do not damage:

Head airbag.
Windscreen.
Retaining clips.
Trim panels.

Release screw (1) on A-pillar.

Tightening torque: 72 12 2AZ .

Release retaining screws (2).

Tightening torque: 72 12 5AZ .

Remove deformation plate (3).

Fig 2: Deformation Plate, Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 72 12 2AZ .

Installation:

Folding pack is under tab washer.

Fig 3: Deformation Plate Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 72 12 2AZ .

Fig 4: Deformation Plate Screw

Courtesy of BMW OF NORTH AMERICA, INC.

UNLOCK AND DISCONNECT plug (3) for gas generator (2).

Release screws (1).

Tightening torque: 72 12 04AZ .

Remove gas generator (2) in direction of arrow.

Installation:

Gas generator is coded against incorrect installation.
