18 12 050 Replacing center muffler (M57T2)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 210

WARNING: Scalding hazard!
These tasks should only be carried out on an exhaust system that has cooled down.

NOTE: If the cutting line is not marked by a punch mark in the pipe, determine the cutting line by means of the pipe length on the new center muffler (3).

Carry over cutting line to faulty center muffler (3) and mark out.

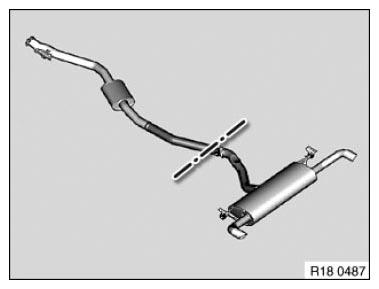

Fig 1: Identifying Exhaust Pipe Mark

G06913674

Courtesy of BMW OF NORTH AMERICA, INC.

Secure center and rear mufflers against falling down.

Cut exhaust pipe at marked point with special tool 00 2 210 and deburr with a standard tool.

Fig 2: Identifying Special Tool 00 2 210

G05502250

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamp.

Installation:

Tightening torque: 18 32 2AZ .

Remove center muffler.

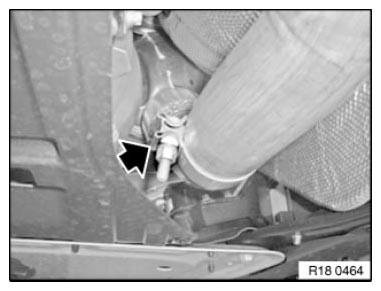

Fig 3: Locating Clamp

G06913662

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust center muffler to fit and connect with clamps.

Center clamp and tighten down.

Fig 4: Identifying Center Clamp

G04794086

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust center muffler to fit so that both tail pipes (1) of rear muffler are centrally situated in openings in rear apron.

Fig 5: Identifying Tail Pipes Of Rear Muffler

G04794079

Courtesy of BMW OF NORTH AMERICA, INC.

Add final details to vehicle.

NOTE: Check exhaust system for leaks.
