18 31 130 Removing and installing/replacing metering unit
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 16 1 130
IMPORTANT:
Ensure adequate ventilation in the place of work!
Avoid skin contact (wear gloves)!
Avoid eye contact (protective goggles)!
Urea/water mixture can escape when parts carrying urea/water mixture are released. Have a collecting container ready.
Observe country-specific waste-disposal regulations.
Avoid skin contact (wear gloves)!
Avoid eye contact (protective goggles)!
Urea/water mixture can escape when parts carrying urea/water mixture are released. Have a collecting container ready.
Observe country-specific waste-disposal regulations.
IMPORTANT:
Maintain conditions of absolute cleanliness.
Connections and covers of urea/water-mixture-carrying lines must be cleaned thoroughly with water after each removal or before each installation!
Thoroughly clean the work area with water after repair work.
Use fluff-free cloths for cleaning.
Seal off connections and lines with special tool 16 1 130!
Thoroughly clean special tool with water after each use.
Connections and covers of urea/water-mixture-carrying lines must be cleaned thoroughly with water after each removal or before each installation!
Thoroughly clean the work area with water after repair work.
Use fluff-free cloths for cleaning.
Seal off connections and lines with special tool 16 1 130!
Thoroughly clean special tool with water after each use.
Necessary preliminary tasks:
- Remove UNDERBODY PROTECTION

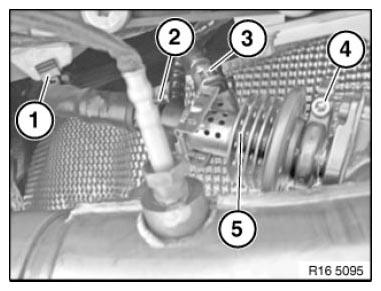

Unclip metering line holder (1) on transmission.
Disconnect metering line (2) from metering module (5).
Release clamp (4) and remove metering module (5).
Disconnect plug connection (3).
After completing work:
Carry out SCR adjustment using BMW Diagnosis and Information System.
Refer to:
- - Service function
-> SCR systems
-> Carry out activation and adjustments
