61 12 013 Replacing negative battery lead
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe SAFETY INFORMATIONS for handling vehicle battery.
Follow instructions for DISCONNECTING AND CONNECTING BATTERY .
Follow instructions on INTELLIGENT BATTERY SENSOR (IBS) .
Follow instructions for DISCONNECTING AND CONNECTING BATTERY .
Follow instructions on INTELLIGENT BATTERY SENSOR (IBS) .
IMPORTANT:
Do not under any circumstances pull or lever off intelligent battery sensor (IBS) by force.
Necessary preliminary tasks:
- Remove BATTERY COVER

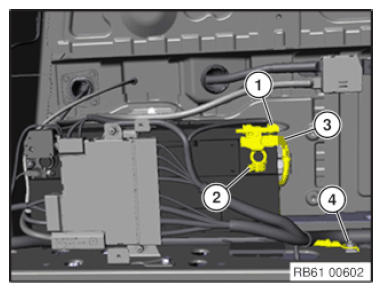

Disconnect plug connection (1).
Slacken nut (2) and detach intelligent battery sensor (IBS) and battery lead (3) from negative terminal.
Tightening torque 61 21 1AZ .
If necessary, detach cable strap for battery negative lead from positive battery cable.
Undo nut (4) and remove battery lead (3).
Tightening torque 61 21 4AZ .
