13 62 624 Replace the temperature sensor for the SCR catalytic converter (M57T2 with SCR)
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Ensure adequate ventilation in the workbay!
Avoid skin contact (wear gloves)!
Avoid eye contact (safety goggles)!
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.
Avoid skin contact (wear gloves)!
Avoid eye contact (safety goggles)!
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.
Necessary preliminary work:
- Remove UNDERBODY PROTECTION .
IMPORTANT:
Risk of burning!
Only perform this repair work on an engine that has cooled down.
Only perform this repair work on an engine that has cooled down.

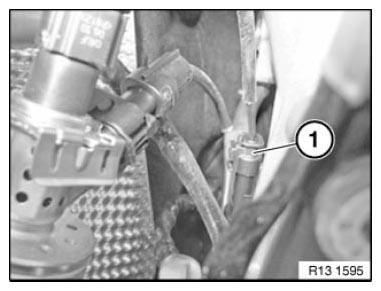

Disconnect connector connection (1).

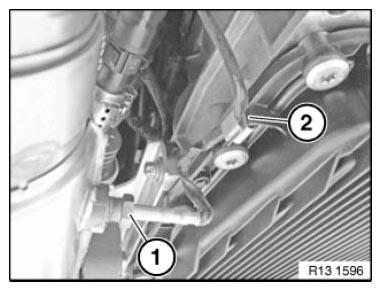

Unclip temperature sensor wiring (1).
Release temperature sensor (2).
Installation note:
Tightening torque: 18 31 3AZ .
