13 62 620 Replace the nitrogen oxide sensor before the SCR catalytic converter (with SCR) M57T2

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 7 030

IMPORTANT: Ensure adequate ventilation in the workbay!
Avoid skin contact (wear gloves)!
Avoid eye contact (safety goggles)!
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.

IMPORTANT: Risk of burning!
Only perform this repair work on an engine that has cooled down.

Necessary preliminary work:

Remove rear UNDERBODY PROTECTION .
Loosen the EXHAUST SYSTEM at the front pipe.

Disconnect plug connection from temperature sensor (1).

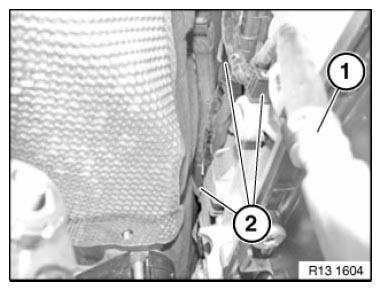

Fig 1: Identifying Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Release nitrogen oxide sensor (1) with special tool 11 7 030 .

Tightening torque: 18 31 2AZ .

Installation note:

Threads of new nitrogen oxide sensors are coated with Never-Seez compound.

If a nitrogen oxide sensor is reused, apply a thin coating of Never-Seez compound to thread only.

Do not clean the sensor section which protrudes into the exhaust branch and ensure that it avoids all contact with lubricants.

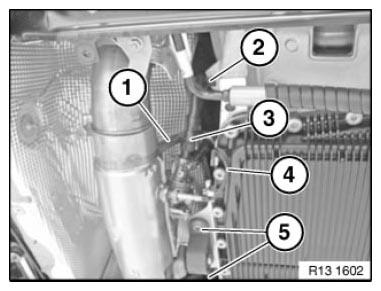

Fig 2: Identifying Nitrogen Oxide Sensor Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip metering line (3) from transmission (2) and detach at metering valve.

Installation note:

Check latch mechanism of metering line (3) on metering valve by pulling.

Unclip temperature sensor wiring (4) on transmission.

Unscrew nuts (5).

Tightening torque: 18 31 7AZ .

Release screws (1) and remove holder (2).

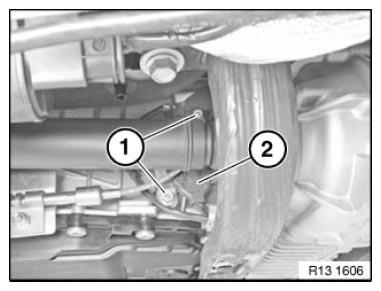

Fig 3: Identifying Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip nitrogen oxide sensor wiring (1) on transmission (2).

Fig 4: Identifying Nitrogen Oxide Sensor Wiring On Transmission

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip nitrogen oxide sensor wiring (1).

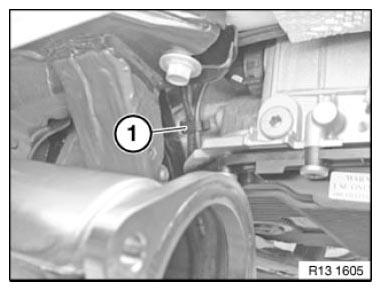

Fig 5: Identifying Nitrogen Oxide Sensor Wiring

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Swing out nitrogen oxide sensor (2).

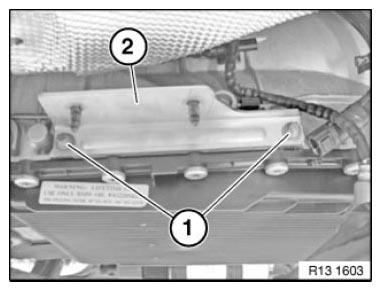

Fig 6: Identifying Nitrogen Oxide Sensor Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) on nitrogen oxide sensor (2).

Feed out nitrogen oxide sensor wiring (2) on transmission.

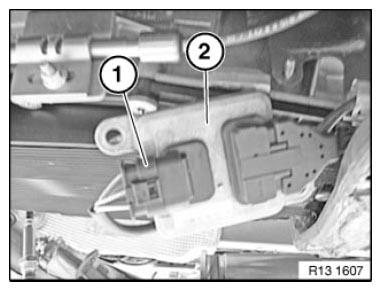

Fig 7: Identifying Plug Connection On Nitrogen Oxide Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

After completing repair work:

Use the BMW diagnosis system to adjust the selective catalytic reduction.

Refer to:

- Service function
-> SCR systems

-> Carry out activation and adjustments
