13 62 560 Removing and installing or replacing the hot film air mass meter (M57TU, M57T2, M57T2 SCR)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Read fault memory of DDE control unit.
Switch off ignition.
Remove UPPER SECTION OF INTAKE FILTER HOUSING

Release screws.

Remove the hot film air mass meter (1) in direction of arrow.

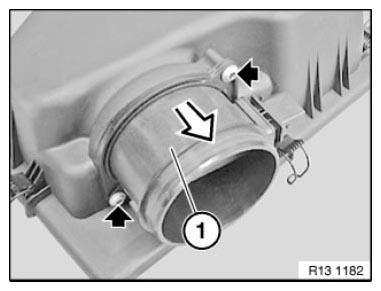

Fig 1: Removing Hot Film Air Mass Meter

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault messages.
Delete fault memory.
