13 62 538 Replacing intake air temperature sensor (M57T2)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of the DDE control unit, work through test plans if necessary.
Switch off ignition

Installation location:

Temperature sensor for charge air is installed at the left charge air line.

Release connector (1) and remove.

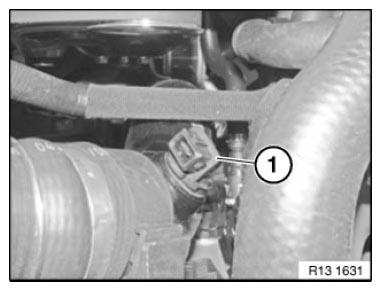

Fig 1: Identifying Intake Air Temperature Sensor Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off anti-twist lock (1) from temperature sensor for charge air.

Fig 2: Identifying Anti-Twist Lock

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For purposes of clarity, the illustration shows the pressure pipe removed

Turn temperature sensor for charge air (1) counterclockwise by 90° and pull out.

Installation note:

Mount the temperature sensor only once.

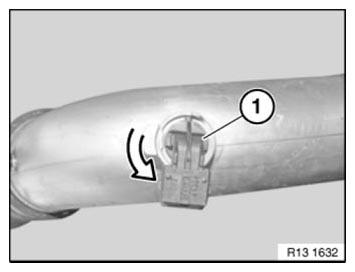

Fig 3: Turning Charge Air Temperature Sensor Counterclockwise

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Delete fault memory.
