13 62 535 Replacing charge-air pressure sensor (M57TU, M57T2)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of the DDE control unit, work through test plans if necessary.
Switch off ignition
Remove acoustic cover at front/rear. See 13..... REMOVE THE ACOUSTIC COVERS (M57T2 WITH AND WITHOUT SCR) .

Unlock connector (1) and remove.

Remove charging pressure sensor (2) in direction of arrow.

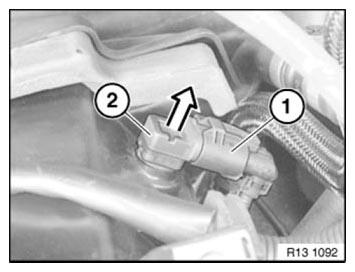

Fig 1: Removing Charging Pressure Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing ring (1) of the charging pressure sensor (2).

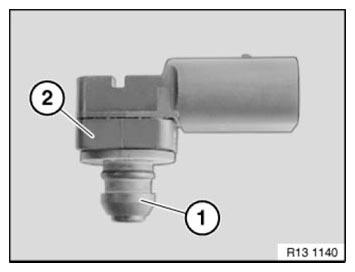

Fig 2: Identifying Sealing Ring Of Charging Pressure Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clear diagnostic fault entries from fault memory.
