13 62 531 Replacing coolant temperature sensor (M57TU, M57T2)
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Read out fault memory of DDE control unit; if necessary, work through test schedules
- Switch off ignition
- Remove intake air manifold. See 11 61 050 REMOVING AND INSTALLING INTAKE PLENUM (M57T2/SCR) .
IMPORTANT:
Protect alternator against coolant.
Cover alternator with suitable apparatus (risk of damage) .
Cover alternator with suitable apparatus (risk of damage) .

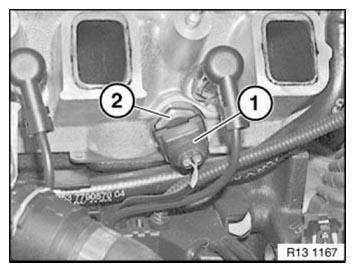

Unlock plug (1) and remove.
Unfasten coolant temperature sensor (2).
Installation:
Tightening torque: 13 62 2AZ .
Now clear the fault memory.
