13 53... Cleaning injector sockets (M67/M57/M57TU/M57T2/M47TU/M47T2)

Special tools required:

• 13 5 210
• 13 5 214
• 13 5 215

Remove injectors.

Seal off hole in injector socket using special tool 13 5 215 in combination with special tool 13 5 214 .

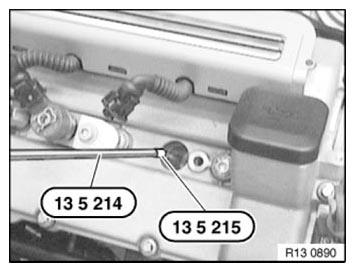

Fig 1: Identifying Injector Socket And Special Tool (13 5 215)

Courtesy of BMW OF NORTH AMERICA, INC.

Detach special tool 13 5 214 from special tool 13 5 215 .

Remove fitting rod from injector socket.

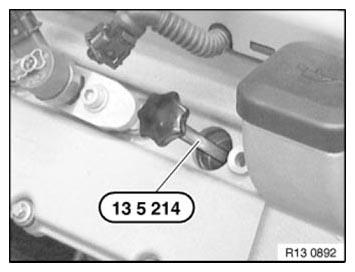

Fig 2: Identifying Special Tool (13 5 214)

Courtesy of BMW OF NORTH AMERICA, INC.

Insert brush holder and brush head of special tool 13 5 210 in the guide sleeve.

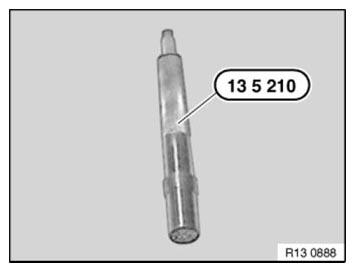

Fig 3: Identifying Special Tool (13 5 210)

Courtesy of BMW OF NORTH AMERICA, INC.

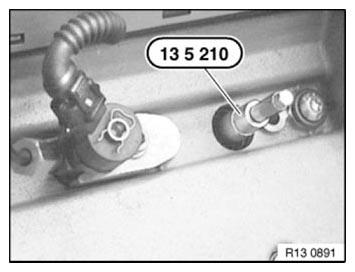

Insert special tool 13 5 210 in the injector socket and push fully home.

Fig 4: Inserting Special Tool 13 5 210 In Injector Socket

Courtesy of BMW OF NORTH AMERICA, INC.

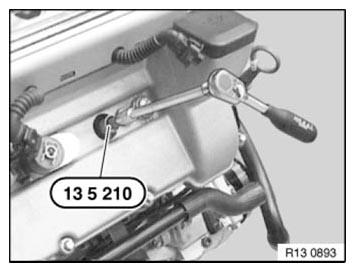

Fit socket on special tool 13 5 210 and turn with a slight amount of pressure.

Fig 5: Fitting Socket On Special Tool (13 5 210)

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sides of injector socket by pushing special tool 13 5 210 in and out.

Fig 6: Identifying Injector Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Blow out injector socket with compressed air while covering the hole with a cloth to catch dirt particles.

Check whether the sealing face is clean.

If necessary, repeat cleaning procedure.

After cleaning, remove special tool 13 5 215 and special tool 13 5 214 from the injector socket.
