32 41 333 Replacing Pressure Line For Power Steering (M57T2)
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
SECURE ENGINE IN INSTALLATION POSITION WITH SPECIAL TOOL
to prevent it from falling down.
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with plugs.
Close off pipe connections with plugs.
Recycling:
Catch and dispose of hydraulic fluid in a suitable container.
Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from fluid reservoir
- Lower front axle carrier . See LOWERING/RAISING FRONT AXLE SUPPORT (SWZ00-2040) or LOWERING/RAISING FRONT AXLE SUPPORT (UNIVERSAL LIFTER) .

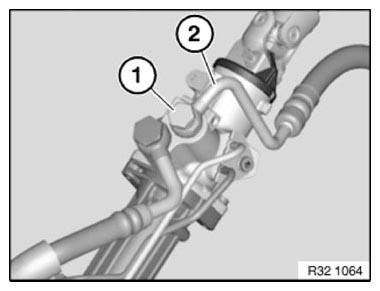

Release banjo bolt (1) and remove pressure line (2) from power steering gear.
Installation:
Replace all sealing rings.
Make sure hydraulic line is laid without tension and with sufficient spacing to adjoining components.
Tightening torque: 32 41 5AZ .

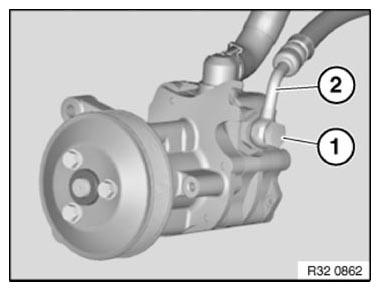

Expose pressure line up to connection on vane pump.
Release banjo bolt (1) and remove pressure line (2).
Installation:
Replace all sealing rings.
Make sure hydraulic line is laid without tension and with sufficient spacing to adjoining components.
Tightening torque: 32 41 4AZ .
After installation:
- Fill and bleed HYDRAULIC SYSTEM
- Check pipe connections for leaks
- Perform chassis alignment check . See KDS WHEEL ALIGNMENT WITH VEHICLE LOAD UP TO DESIGN POSITION or KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD
- Carry out steering angle sensor adjustment/adjustment for active front steering . See CARRYING OUT STEERING ANGLE SENSOR ADJUSTMENT or ADJUSTMENT FOR ACTIVE FRONT STEERING .
