0494325 512190 Adjuster Minimum set: Mechanical tools AM: Notes

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (door lock tensioner) For pre-tensioning front and rear door locks when installing. Change to tool through use of noise-optimized locks from 02/2004. Illustration items: 1 = knurled nut 51 2 191 2 = support 51 2 192 3 = protection 51 2 196 4 = mandrel 51 2 197

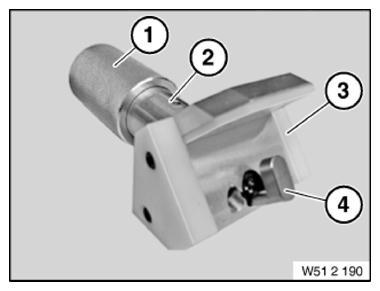

Fig 1: Identifying Adjuster (0494325)

Courtesy of BMW OF NORTH AMERICA, INC.
