Storage Location

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

C2

Consisting of:

  1. 0492621  Handle

    Note:

  2. 0492622  Pull-in eye
    NOTE: Model: 1502...2002tii
  3. 0492623  Pull-in eye
    NOTE: (Pull-in eye) model: 1800, 1800A, 2000, 2000A, 2000tilux, 2000tii
  4. 0492624  Pull-in eye
    NOTE: (Pull-in eye) model: 520, 525e

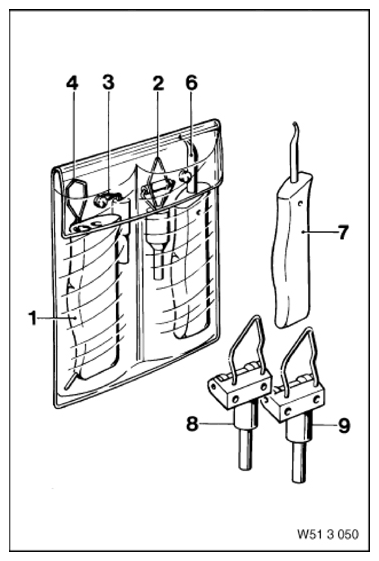

    Fig 1: Identifying Tool (0492620)
    G09972932Courtesy of BMW OF NORTH AMERICA, INC.
  5. 0492625  Hexagon socket
    NOTE: (Hexagon socket wrench) model: 728...733
  6. 0492626  Hook
    NOTE: (Installer hook) For window rubber - model: all, except 728...733i)
  7. 0492627  Hook
    NOTE: (Installer hook) For window rubber - model: 728...733i
  8. 0492628  Pull-in eye
    NOTE: For windscreen filler strip - Model series: E30
  9. 0492629  Pull-in eye
    NOTE: For filler strip - Model series: E28/model year: from 83
