0492614 513040 Device AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For pressing down the glued window glass

Consisting of:

0492615 Pipe
NOTE: (Transverse pipe)
0492616 Gauge
NOTE: (Positioning eyes)
0492617 Screw
NOTE: (Star bolt)
0492618 Belt
NOTE: (Lashing strap)
0492619 Hook
NOTE: (Drawing hook)

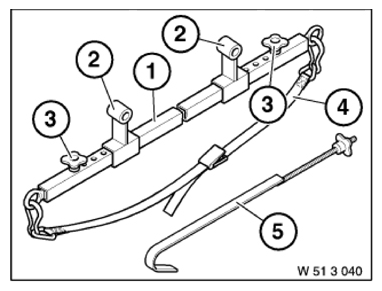

Fig 1: Identifying Device (0492614)
Courtesy of BMW OF NORTH AMERICA, INC.
