SI number

WARNING: This page is about a different car, the 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 10 90 (288)

Consisting of:

0492318 Shaped element
NOTE: For pulling the rear rubber mounts out of the rear axle support, series: E36, E46
0492319 Washer
NOTE: (Thrust washer) For installing the front/rear rubber mount, series: E36, E46
0492320 Shaped element
NOTE: For pulling the front rubber mounts out of the rear axle support, series: E36, E46

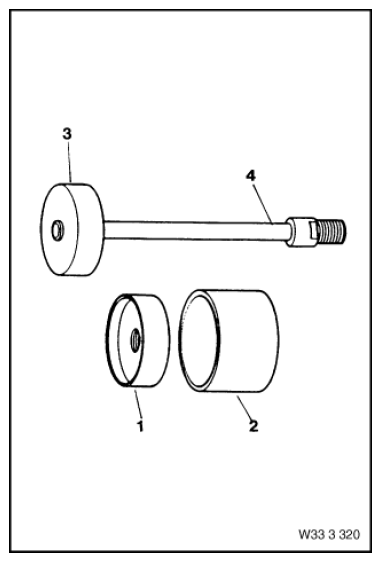

Fig 1: Identifying Spindle (0492317)
Courtesy of BMW OF NORTH AMERICA, INC.
0492321 Spindle
NOTE: For pulling out the front rubber mount, series: E36, E46
