0491825 271080 Device AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For driving in the radial shaft seal in the transfer box on the output shaft at the front

Consisting of:

  1. 0491826 Bush
    NOTE: (Slip bush)
  2. 0491827 Mandrel
    NOTE: (Drift)
    Fig 1: Device (0491825)
    G09930781Courtesy of BMW OF NORTH AMERICA, INC.


NOTE: For driving in the radial shaft seal in the transfer box on the output shaft at the front

Consisting of:

  1. 0491826 Bush
    NOTE: (Slip bush)
  2. 0491827 Mandrel
    NOTE: (Drift)

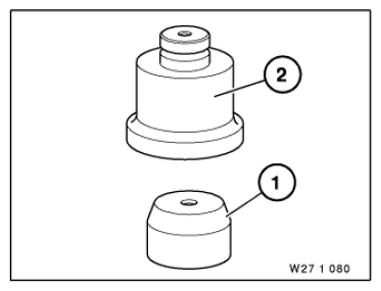

    Fig 1: Device (0491825)
    G09971612Courtesy of BMW OF NORTH AMERICA, INC.
