0491821 271031 Frame AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: (Main frame with spindle)

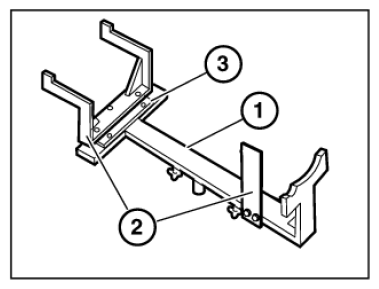

Fig 1: Frame (0491821)
G09971618Courtesy of BMW OF NORTH AMERICA, INC.
