SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 19 11 (742)

Consisting of:

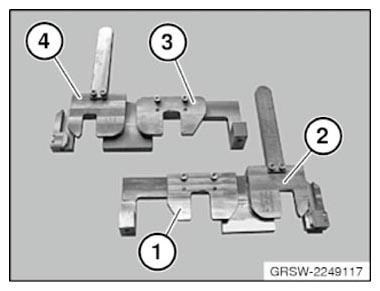

Fig 1: Identifying Gauge (2249117)

Courtesy of BMW OF NORTH AMERICA, INC.

2249137 Gauge
NOTE: Gauge, intake camshaft, bank 1. Available as part of set of special tools 83 30 2 249 117 only.
2249140 Gauge
NOTE: Gauge, exhaust camshaft, bank 1. Available as part of set of special tools 83 30 2 249 117 only.
2249144 Gauge
NOTE: Gauge, intake camshaft, bank 2. Can only be ordered via complete set 83 30 2 249 117.
2249159 Gauge
NOTE: Gauge, exhaust camshaft, bank 2. Can only be ordered via complete set 83 30 2 249 117.
