SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 20 06 (299)

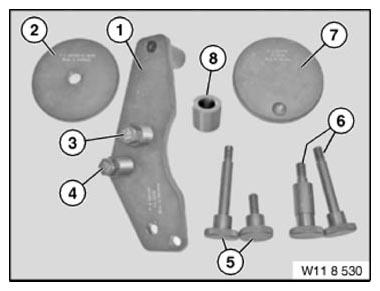

Fig 1: Identifying Removal And Fitting Aid (0495728)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

0495729 Plate
NOTE: (base plate) Remaining inventories will be sold off followed by discontinuation and then available as part of complete set 11 8 530 = 83 30 0 495 728 only.
0495730 Plate
NOTE: (pressure plate) Remaining inventories will be sold off followed by discontinuation and then available as part of complete set 11 8 530 = 83 30 0 495 728 only.
0495731 Spindle
NOTE: (spindle (pressure plate)) Remaining inventories will be sold off followed by discontinuation and then available as part of complete set 11 8 530 = 83 30 0 495 728 only.
0495732 Spindle
NOTE: (spindle (unmounting plage)) Remaining inventories will be sold off followed by discontinuation and then available as part of complete set 11 8 530 = 83 30 0 495 728 only.
0495733 Screw
NOTE: (Set of screws M10 (N54)) Available with complete set 11 8 530 = 83 30 0 495 728 only.
0495734 Screw
NOTE: (Set of screws M11 encl. sleeve (N53)) Liquidation of existing inventory and then available with complete set 11 8 530 = 83 30 0 495 728 only.
0495735 Plate
NOTE: (unmounting plate) Remaining inventories will be sold off followed by discontinuation and then available as part of complete set 11 8 530 = 83 30 0 495 728 only.
0496704 Bush
NOTE: Remaining inventories will be sold off followed by discontinuation and then available as part of complete set 11 8 530 = 83 30 0 495 728 only.

In conjunction with: 11 8 530 = 0495728
