SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 02 05 (173)

Consisting of:

  1. 0495146  Plate
    NOTE: Available only as a complete tool set 11 5 230 (83 30 0 495 117) - as of 27.01.12

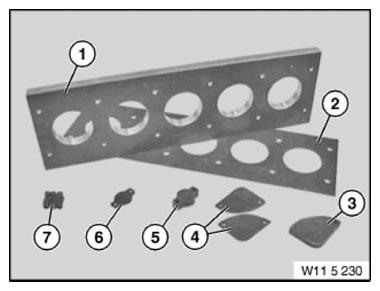

    Fig 1: Identifying Device (0495117)
    G09968987Courtesy of BMW OF NORTH AMERICA, INC.
  2. 0495147  Gasket
    NOTE: Available only as a complete tool set 11 5 230 (83 30 0 495 117) - as of 27.01.12
  3. 0495148  Plate
    NOTE: Available only as a complete tool set 11 5 230 (83 30 0 495 117) - as of 27.01.12
  4. 0495149  Gasket
    NOTE: Available only as a complete tool set 11 5 230 (83 30 0 495 117) - as of 27.01.12
  5. 0495150  Plate
    NOTE: Available only as a complete tool set 11 5 230 (83 30 0 495 117) - as of 27.01.12
  6. 0495151  Gasket
    NOTE: Available only as a complete tool set 11 5 230 (83 30 0 495 117) - as of 27.01.12
  7. 0495152  Screw
    NOTE: Available only as a complete tool set 11 5 230 (83 30 0 495 117) - as of 27.01.12
