SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 17 04 (130)

Consisting of:

0495015 Plate
NOTE: (Base plate with gasket) Liquidation of existing inventory and then available only via complete tool set 11 4 340 = 83 30 0 495 014 - status 29.11.2011

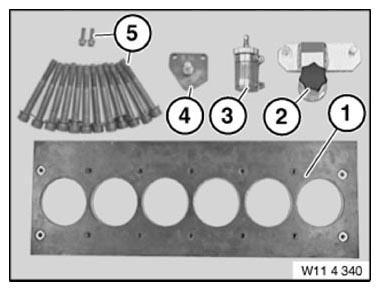

Fig 1: Identifying Device (0495014)
Courtesy of BMW OF NORTH AMERICA, INC.
0495016 Plate
NOTE: (Plate with thrust piece) Available only as a complete tool set 11 4 340 = 83 30 0 495 014 - as of 29.11.2011
0495017 Hose
NOTE: (Hose with air connection) Liquidation of existing inventory and then available only via complete tool set 11 4 340 = 83 30 0 495 014 - status 29.11.2011
0495724 Plate
NOTE: (Adapter plate with valve) N54 Liquidation of existing inventory and then available only via complete tool set 11 4 340 = 83 30 0 495 014 - status 29.11.2011
0495725 Screw
NOTE: (Screw set) N54 sale of existing inventory then available as part of set of special tools 11 4 340 = 83 30 0 495 014 only - as of 29.11.2011
