SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 03 02 (833)

Consisting of:

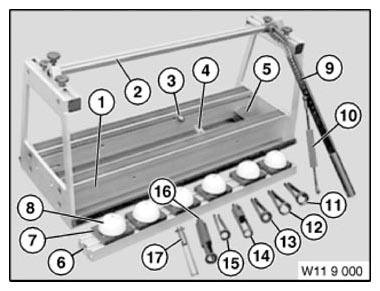

Fig 1: Identifying Device (0494362)

Courtesy of BMW OF NORTH AMERICA, INC.

1 = 0494366 Device
2 = 0494367 Rod
3 = 0494368 Adapter
NOTE: (Sliding block)
4 = 0494369 Tab
5 = 0494370 Quick fastener
6 = 0494371 Insert
NOTE: (Aluminum strip)
7 = 0494372 Shaped part
NOTE: (Shaped part)
8 = 0494373 Shaped part
NOTE: (Shaped part) Shaped part made of plastic
9 = 0494374 Lever
10 = 0494375 Hook
11 = 0494376 Basket
NOTE: (Valve spring cage) Engine M41, M51, S50
12 = 0494377 Basket
NOTE: (Valve spring cage) Engine M43, M73
13 = 0494378 Basket
NOTE: (Valve spring cage) Engine M44, M52, M54, M56, M62, S52, S54, S62
14 = 0494379 Basket
NOTE: (Valve spring cage) Engine M47, M47TU, M57, M57TU, N40, N42, N62, N73
15 = 0494380 Basket
NOTE: (Valve spring cage) Engine M21, M40
17 = 0495028 Basket
NOTE: (Valve spring cage) Engine N52
