SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 02 02 (823)

Consisting of:

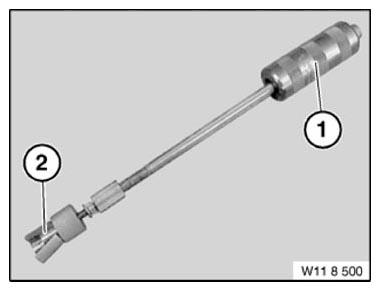

Fig 1: Identifying Extractor (0494312)

Courtesy of BMW OF NORTH AMERICA, INC.

0494357 Weight
NOTE: (Weight) Only available as part of complete tool set 11 8 500 (83 30 0 494 312).
0494358 Shaped part
NOTE: (Shaped part) 4 pieces Only available as part of complete tool set 11 8 500 (83 30 0 494 312).
0494530 Screw
NOTE: (Screw with hexagon socket) Only available as part of complete tool set 11 8 500 (83 30 0 494 312).
0494531 Adapter
NOTE: Only available as part of complete tool set 11 8 500 (83 30 0 494 312).
0494532 Holding sleeve
NOTE: Only available as part of complete tool set 11 8 500 (83 30 0 494 312).
0494533 Tapered section
NOTE: (Cone with washer and nut) Only available as part of complete tool set 11 8 500 (83 30 0 494 312).
