SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 01 01 (662)

Consisting of:

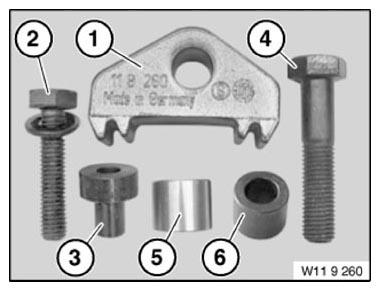

Fig 1: Identifying Holder (0493938)
G09969239Courtesy of BMW OF NORTH AMERICA, INC.
  1. 0494034  Holder
    NOTE: (Individual counter support)
  2. 0494035  Screw
    NOTE: (Bolt (thread M10) with washer) For screwing counter support
  3. 0494129  Bush
    NOTE: (Bush for counter support) For counter support, for retaining flywheel when gearbox is removed Engine: N62, N73
  4. 0494130  Screw
    NOTE: (Bolt (thread M12)) For counter support for retaining flywheel when gearbox is removed
  5. 0494793  Bush
  6. 0495216  Bush
    NOTE: For counter support, for retaining flywheel when gearbox is removed Engine: M57TU2
