SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 01 01 (662)

Consisting of:

  1. 0494021  Bush

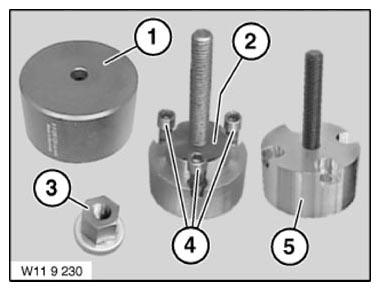

    Fig 1: Identifying Device (0493935)
    G09969015Courtesy of BMW OF NORTH AMERICA, INC.
  2. 0494022  Spindle
  3. 0494023  Nut
  4. 0494024  Screw
    NOTE: (screws (3 x))
  5. 0496670  Spindle
    NOTE: N55
