SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 01 01 (662)

Consisting of:

1 = 0494039 Synchronizing key

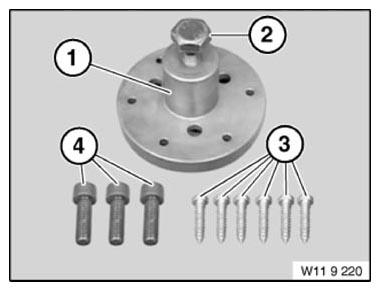

Fig 1: Identifying Extractor (0493934)
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Discontinued; can only be ordered as part of complete tool 11 9 220 = 83 30 0 493 934.
1 = 0494040 Screw
1 = 0494041 Screw
NOTE: (Screws (6 pieces)) Liquidation of existing inventory, then deletion and available only via complete special tool 11 9 220 = 83 30 0 493 934
4 = 0494042 Screw
NOTE: (Screws (3 pieces)) Liquidation of existing inventory, then deletion and available only via complete special tool 11 9 220 = 83 30 0 493 934
5 = 0496261 Screw
NOTE: Discontinued; can only be ordered as part of complete tool 11 9 220 = 83 30 0 493 934.
6 = 0496262 Puller
NOTE: Discontinued; can only be ordered as part of complete tool 11 9 220 = 83 30 0 493 934.
