SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 14 01 (766)

Consisting of:

0494234 Plate
NOTE: (Base plate) Replaced by 33 4 420 (0 494 611)

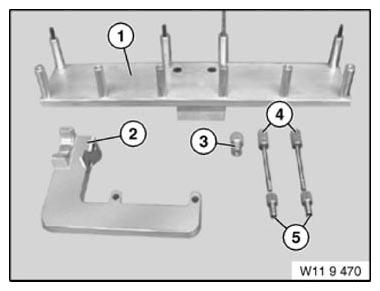

Fig 1: Identifying Fixture (0493928)
Courtesy of BMW OF NORTH AMERICA, INC.
0494235 Shaped element
0494236 Nut
NOTE: (Knurled nut) Replaced by 00 9 120 (0 490 504)
0494237 Screw
NOTE: (Securing screws (2x))
0494238 Bush
NOTE: (Guide bushes (2x))
0494318 Shaped element
NOTE: For locating intake camshaft when fitting into bearing bracket - Engine: N73
