0493711 117390 Device AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Pressure testing fixture, complete) For sealing coolant openings when pressure-testing cylinder head for watertightness

Consisting of:

0493712 Strip
NOTE: (Sealing strip with 7 tabs) liquidation of current inventory and then available only with complete tool set 11 7 30 (83 30 0 493 711) Status as of 11.09.12.

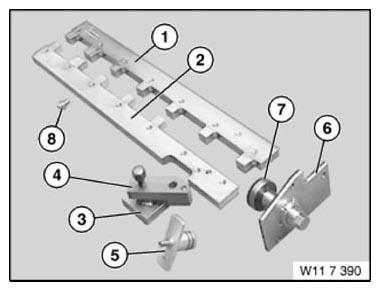

Fig 1: Identifying Device (0493711)
Courtesy of BMW OF NORTH AMERICA, INC.
0493713 Strip
NOTE: (Sealing strip with 5 tabs) liquidation of current inventory and then available only with complete tool set 11 7 30 (83 30 0 493 711) Status as of 11.09.12.
0493714 Plate
NOTE: (Cover plate) For cylinder head joint surface, liquidation of remaining inventory and then only available with complete tool set 11 7 30 (83 30 0 493 711) Status as of 11.09.12.
0493715 Holder
NOTE: Liquidation of current inventory with pressure spindle and mounting screw for 11 7 393 then available for ordering only with complete tool set 11 7 30 (83 30 0 493 711) Status as of 11.09.12.
0493716 Plug
NOTE: (Plug) Liquidation of current inventory with air connection fitting and then available for ordering only with complete tool set 11 7 30 (83 30 0 493 711) Status as of 11.09.12.
0493717 Plate
NOTE: (Cover plate, end face) Liquidation of current inventory and then available for ordering only with complete tool set 11 7 30 (83 30 0 493 711) Status as of 11.09.12.
0493718 Spindle
NOTE: Liquidation of current inventory with thrust piece for 11 7 396 and then available only with complete tool set 11 7 30 (83 30 0 493 711) Status as of 11.09.12.
0493719 Screw
NOTE: (Threaded plug, intake side) Liquidation of current inventory and then available for ordering only with complete tool set 11 7 30 (83 30 0 493 711) Status 11.09.12.
