SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 23 98 (390)

Consisting of:

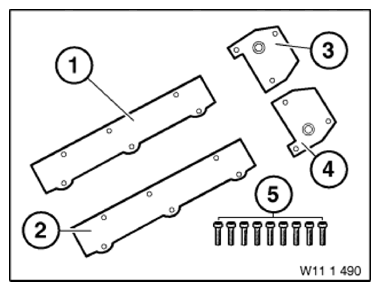

Fig 1: Identifying Device (0493444)

Courtesy of BMW OF NORTH AMERICA, INC.

5 = 0493443 Screw
NOTE: (Mounting bolts (9 pieces)) M6 x 20 From 09/2011 remaining inventories will be sold off, followed by discontinuation. There is also no longer a set available
1 = 0493445 Strip
NOTE: (Sealing strip cylinder row 1 - 4) From 09/2011 remaining inventories will be sold off, followed by discontinuation. There is also no longer a set available.
2 = 0493446 Strip
NOTE: (Sealing strip cylinder row 5 - 8) From 09/2011 remaining inventories will be sold off, followed by discontinuation. There is also no longer a set available
3 = 0493447 Plate
NOTE: (Sealing plate cylinder row 1 - 4) From 09/2011 remaining inventories will be sold off, followed by discontinuation. There is also no longer a set available
4 = 0493448 Plate
NOTE: (Sealing plate cylinder row 5 - 8) From 09/2011 remaining inventories will be sold off, followed by discontinuation. There is also no longer a set available
