SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 06 98 (306)

Consisting of:

1 = 0493237 Strip

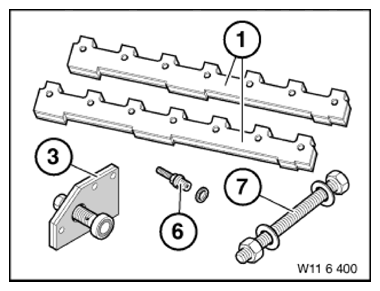

Fig 1: Identifying Device (0493231)
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: (Sealing strips (2 pieces) with rubber seal) 09/2011 can only be ordered as part of the complete special tool 0493231 (116400).
1 = 0493238 Rubber seal
NOTE: (Rubber seal (2 pieces)) For sealing strips 11 6 401 09/2011 remaining inventories will be sold off, followed by discontinuation, then can only be ordered as part of the complete special tool 0493231 (116400).
3 = 0493239 Cover
NOTE: Engine: M47, M57/For coolant pump connection 09/2011 Remaining inventories will be sold off, followed by discontinuation, then can only be ordered as part of the complete special tool 0493231 (116400).
3 = 0493240 O-ring
NOTE: Engine: M47/For spindle on cover 11 6 403 09/2011 remaining inventories will be sold off, followed by discontinuation, then can only be ordered as part of the complete special tool 0493231 (116400).
6 = 0493242 Screw
NOTE: (Screw plug M12 with valve) Engine: M47, M57, M47TU 09/2011 can only be ordered as part of the complete special tool 0493231 (116400).
7 = 0493307 Screw
NOTE: (Mounting bolts (14 pieces)) M12 x 125 with nuts and 28 washers for sealing strips. 09/2011 remaining inventories will be sold off, followed by discontinuation, then can only be ordered as part of the complete special tool 0493231 (116400).
9 = 0493376 Plate
NOTE: (Sealing plate) Engine: M57, M47TU/To close off the coolant outlet opening. 09/2011 remaining inventories will be sold off, followed by discontinuation, then can only be ordered as part of the complete special tool 0493231 (116400).
