SI number

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

01 04 98 (304)

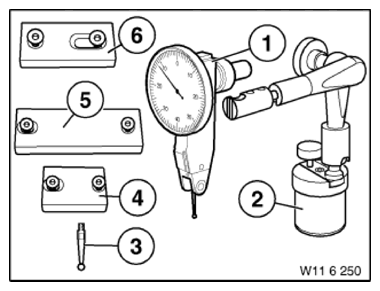

Fig 1: Identifying Measuring Device (0493143)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

4 = 0495214 Plate
NOTE: (Fixture) Engine: M47T2; M57T2; S85
5 = 0495468 Plate
NOTE: (Fixture M7) Engine camshaft: M67TU
6 = 0495470 Plate
NOTE: (Fixture M8) Engine crankshaft: M67TU
1 = 0493144 Dial gauge
NOTE: (Dial gauge) With 0.8 mm measuring range in each direction
2 = 0493145 Tripod
NOTE: (Small hydraulic tripod with magnetic base)
3 = 0493146 Sensor
NOTE: (Sensor) Sensor arm 11.5 mm
