0493138 116260 Bush AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Assembly bushes with case) For installing pistons of 85 mm diameter (urgently required for pistons with U-Flex ring)

Consisting of:

1 = 0493139 Bush
NOTE: (Assembly bush) Diameter 85.00 mm

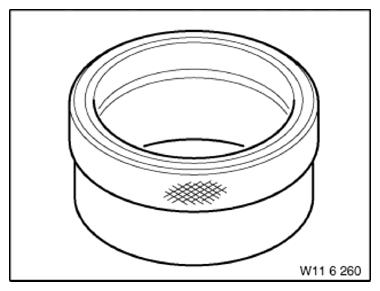

Fig 1: Identifying Bush (0493138)
Courtesy of BMW OF NORTH AMERICA, INC.
2 = 0493140 Bush
NOTE: (Assembly bush) Diameter 85.08 mm, repair
3 = 0493141 Bush
NOTE: (Assembly bush) Diameter 85.25 mm, stage 1
4 = 0493142 Bush
NOTE: (Assembly bush) Diameter 85.50 mm, stage 2
9 = 0493323 Case
NOTE: (Case) For storing assembly bushes, gauge 11 6 270 and lever dial gauge 11 6 250
