0491049 115060 Measuring device AM

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: (Temperature sensor) For measuring cylinder head temperature when replacing toothed belt

Consisting of:

1 = 0491050 Measuring device
NOTE: (Device) Old type: TTX 1090/new type: TFN 1093

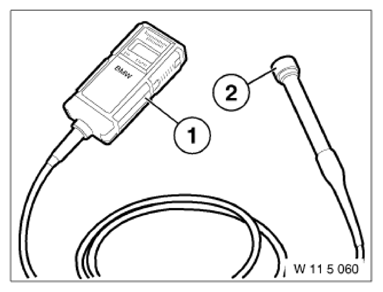

Fig 1: Identifying Measuring Device (0491049)
Courtesy of BMW OF NORTH AMERICA, INC.
2 = 0491051 Sensor
NOTE: (Sensor)
9 = 0491052 Operating instructions
